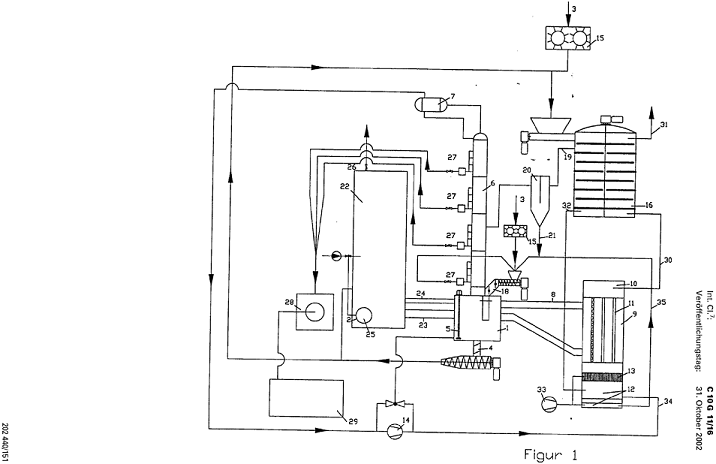

Designation Fig. 1
1 reactor
2 carrier oil
3 feeder
4 waste catalyst lock
5 agitator
6 distillation column
7 capacitor
8 connecting pipes
9 circulation evaporator
10 container
11 smoke tubes
12 combustion chamber with burner
13 honeycomb ceramic
14 water jet pump, vacuum pump
15 shredder
16 regenerator
17 flue gas
18 hydrocarbon-containing starting materials in regenerator
19 Hydrocarbon vapors
20 Separator
21 water treatment
22 discharge vessel
23 pipe size to discharge vessel
24 piping from the discharge vessel
25 level indicator
26 pressure relief valve
27 to discharge openings of the distillation column
27 a intercooler
28 liquid
29 tanks
30 flue gas pipe from the circulation evaporator in the soils of the drier
31 smoke duct from the dryer into the chimney
32 Derivation of the dried goods from the dryer into the combustion chamber
33 combustion air fan
34 product gas line in the combustion chamber
35 catalyst recycling
